High quality micro ceramic gravure coating system
Product Description

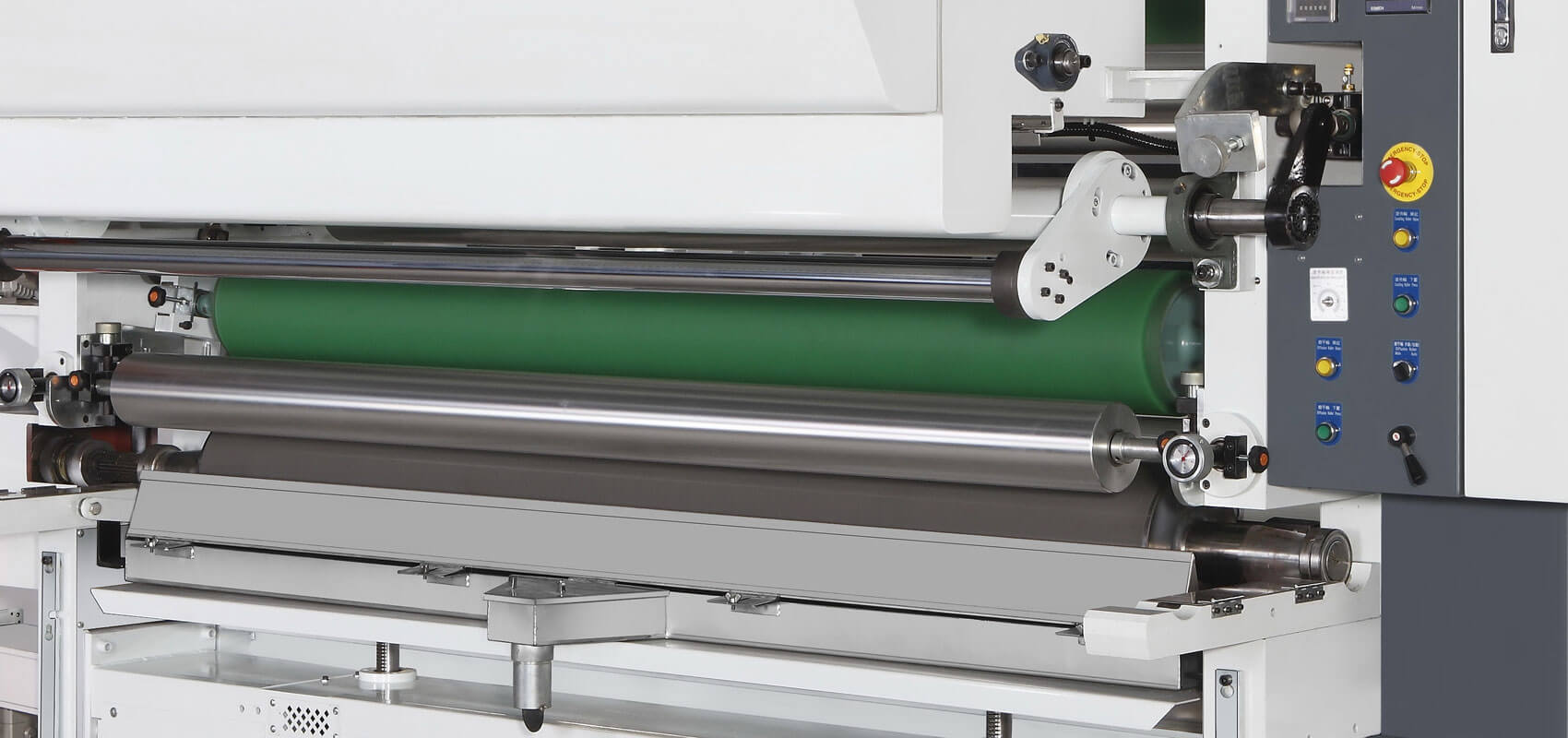

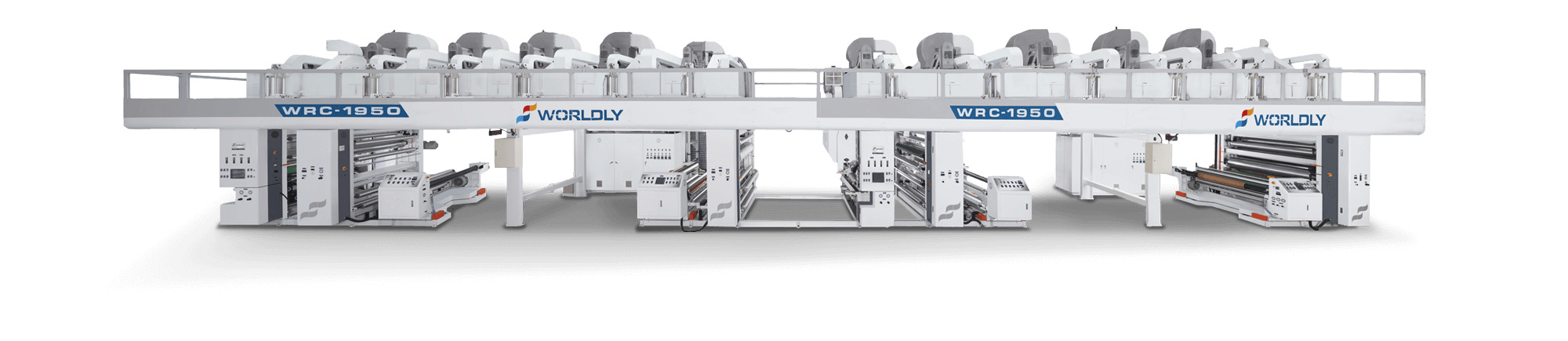

WORLDLY's tandem type coating machine is adapting rotogravure precision coating in high speed to coat on the either wide or narrow material. it works simultaneously by connecting two machines or operate separately to acquire the uppermost productive benefit.With 6 heating chambers equipped with specially designed nozzles to help temperature stabilized as desired. Not only a LEL device and anti-explosive safety valve are there to have safety secured but also Hot air recycling system is designed to achieve 30-40% energy saving. The whole machine is controlled by PLC, in addition the temperature and the wind velocity are monitored by human-machine interface thus the production can be smooth and stable. Besides, the machine can work with vacuum metalizer to produce metalized film.

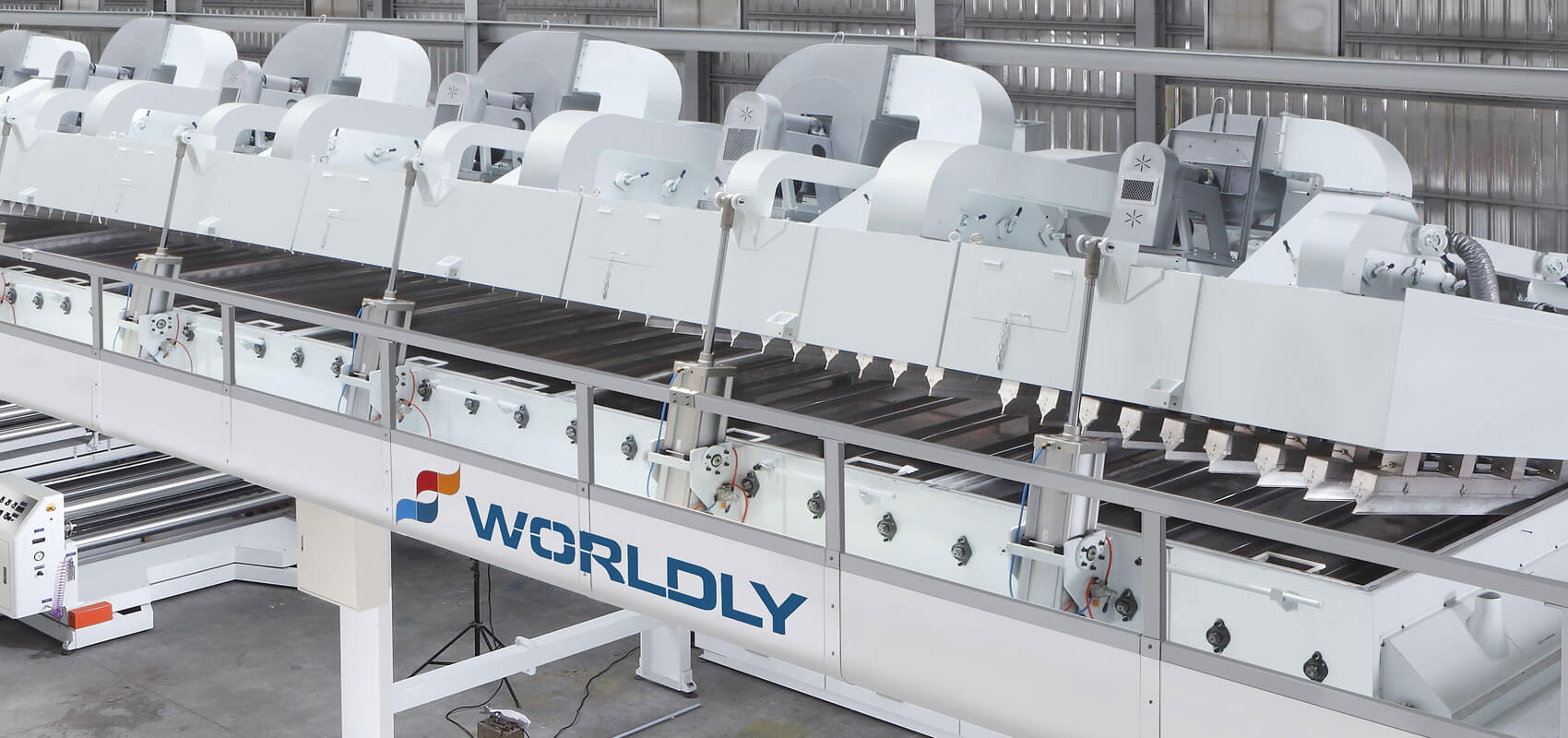

Individual drying chamber with removable high efficiency drying nozzle design

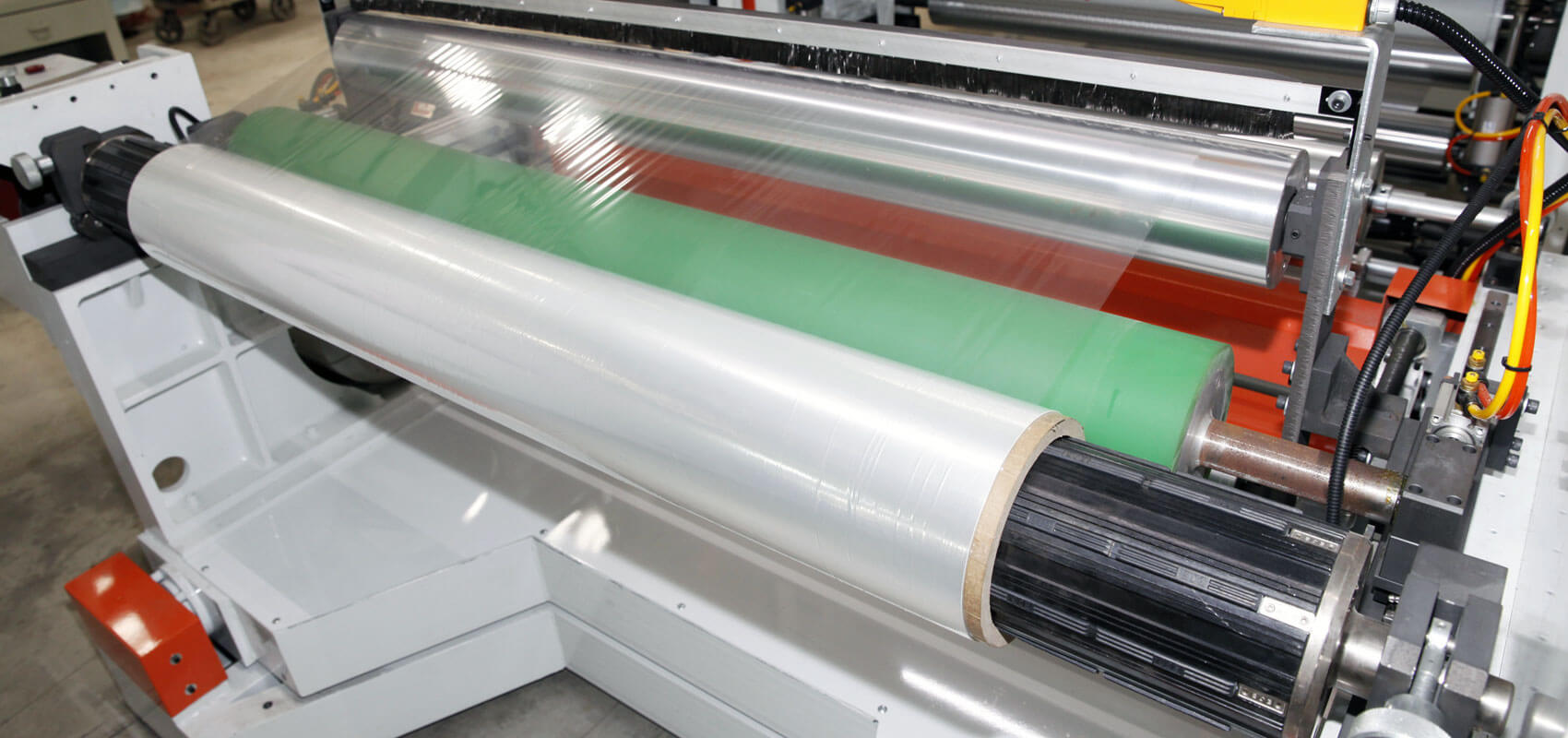

Tracking roller designed for uniform roll winding performance and neat wrinkle free rolls
Specifications
| Model | WRC-DT |
|---|---|
| Maximum Machine Speed | 250 m/min |
| Coating Speed | 220 m/min |
| Coating Width | 1000 mm / 1300 mm / 1600 mm |
| Material Diameter | Ø800 mm / Ø1000 mm |
Applications
PET, CPP, PVC,OPP, PP, PE, Nylon, Aluminum Foil, Paper.
Laser Film

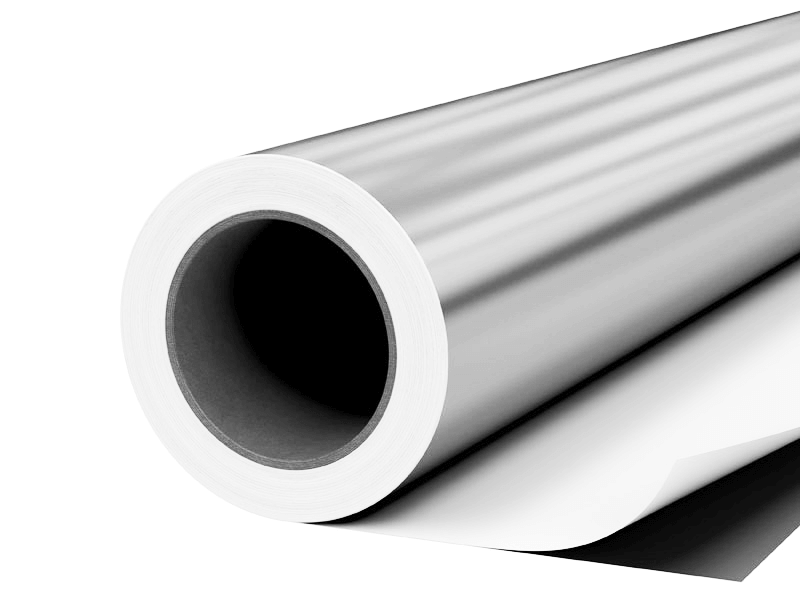

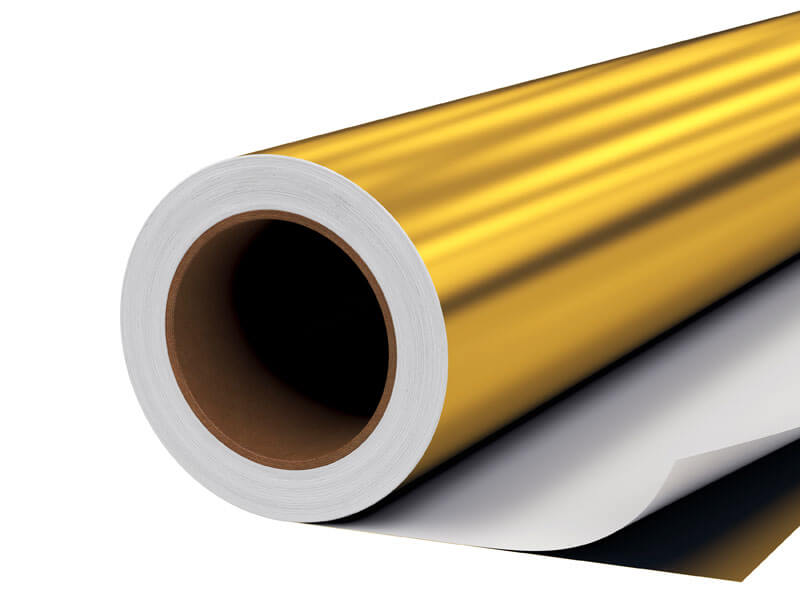

Metallized Film
