WRP-HI Series

Computerized High Speed Rotogravure Printing Machine

Rotogravure Printing Machine

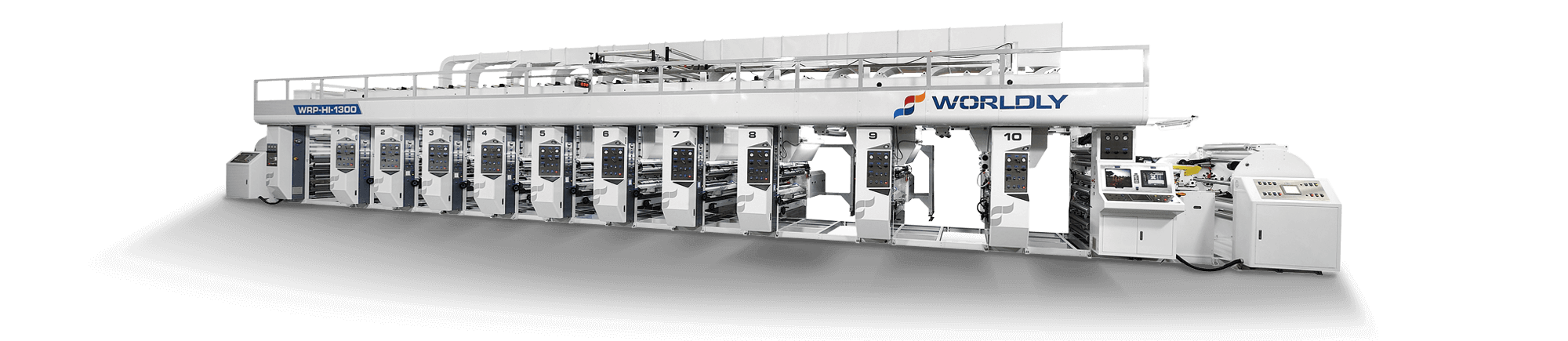

Computerized High Speed Rotogravure Printing Machine

Product Description

In pursuit of efficient high quality printing machinery, Worldly develops machines featuring user friendly automatic operation and high stability of mechanical equipment made by specialized technology and deliberate design. Throughout the use of a central control system, including PLC control, human-machine touch screen interface and automatic alarm systems, technical operators can easily and accurately monitor the required printing quality. The splicing design is a collaboration of vertical and horizontal movement splicers, combined with tracking pressure rollers this design insures accurate and stable splicing. An Eco- Friendly Exhaust Heat Recycling system is specially built into the design, reducing high amounts of energy costs and also helps save the environmental at the same time.

Ink resistance material of furnishing roller optimized ink circulation, avoid cylinder cell ink stock and improve printing quality. The roller driven by motorized can manual or automatic mode synchronized with printing speed.

Quick change over doctor blade holder design

Doctor blade quick locking by tool-less. The group allows horizontal, vertical and angular adjustment for the doctor blade position on engraved cylinder.

Heating recycling energy saving

Heating recycling & energy saving : Exclusive energy-saving design to increase the recycling benefit of investment costs. The system is constructed of connection ducts, ventilation modules, hood drying chambers, and central exhaust system. Recycle waste hot air to save energy consumption.

Centralized control system allow man power saving

Centralized control system integrated operator HMI, web video monitor, and color registration panel for easy access working parameter and man power saving. Automatic longitudinal and side-lay register control system. High flexibility master mark setting. Also able to save various parameter conditions to job memory.

Latest E.L.S technology

All unwinder, in-feed unit, printing units, out-feed unit,, rewinder are individually driven by AC servo motors and drives. The cylinder has direct driven to optimized the ransmission with low mechanical loss. Whole machine automation and tension controlled by high performance PLC system.

Specifications

Model WRP-HI
Maximum Machine Speed 270 m/min
Printing Maximum Speed 250 m/min
Printing Width 1000 mm / 1200 mm / 1300 mm
Printing Cylinder 350 mm - 900 mm
Material Diameter Ø800 mm / Ø1000 mm

Applications

PET, CPP, PVC,OPP, PP, PE, Nylon, Aluminum Foil, Paper.
