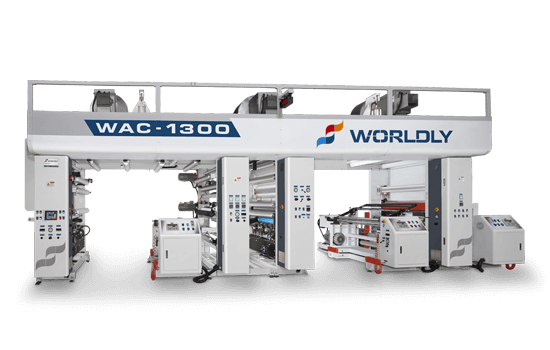

Alu-Foil HSL Coating Machine

Product Description

WACL series is not just a convention dry laminating machine. The cold form foil is very much concerned proper & precise tension control to handle such thick laminates. In terms of tension control, this machine has mainly designed for Alu-alu foil multi-layers lamination. The arch dryer roller has synchronized with line speed, it’s very low friction and steady when film pass through the dryer. The internal drying chamber has safety LEL detection, this system can automatically discharge when detected high VOC occur during the production. This machine also combined heat seal lacquering coating function. Additional primer coating unit before lacquering unit, so it allows to apply two side (primer+heat seal) coating in one pass. The coating unit has alternative function with direct gravure and semi-flexo coating systems. Coating trolley along with self-pump system and able for quick job change.

Trolley type coating unit can be equipped with either a gravure or semi-flexo coating system that is also easily cleaned

Primer & HSL coating units are in line for 2 side coating reducing production time

Individual drying chamber with removable high efficiency drying nozzle design

Specifications

Model WAC
Maximum Machine Speed 200 m/min
Coating Speed 180 m/min
Coating Width 800 mm / 1000 mm / 1300 mm
Material Diameter Ø600 mm / Ø800 mm

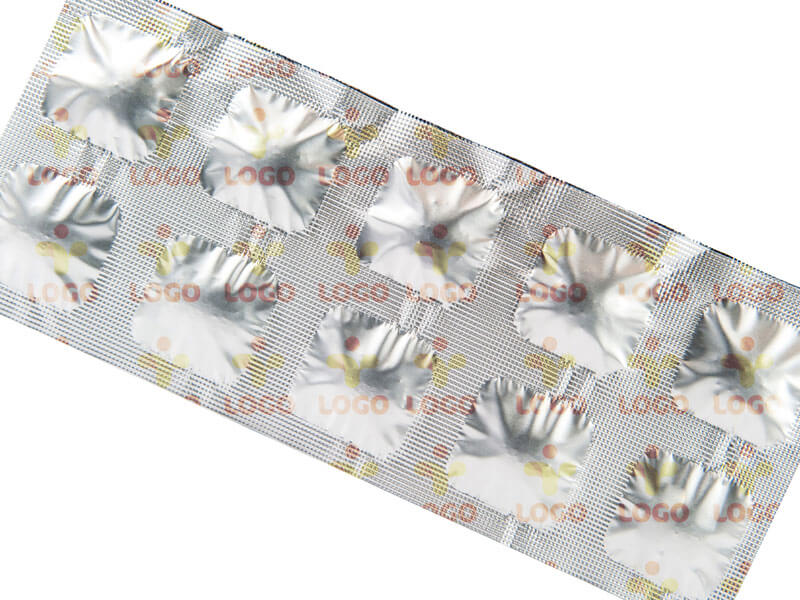

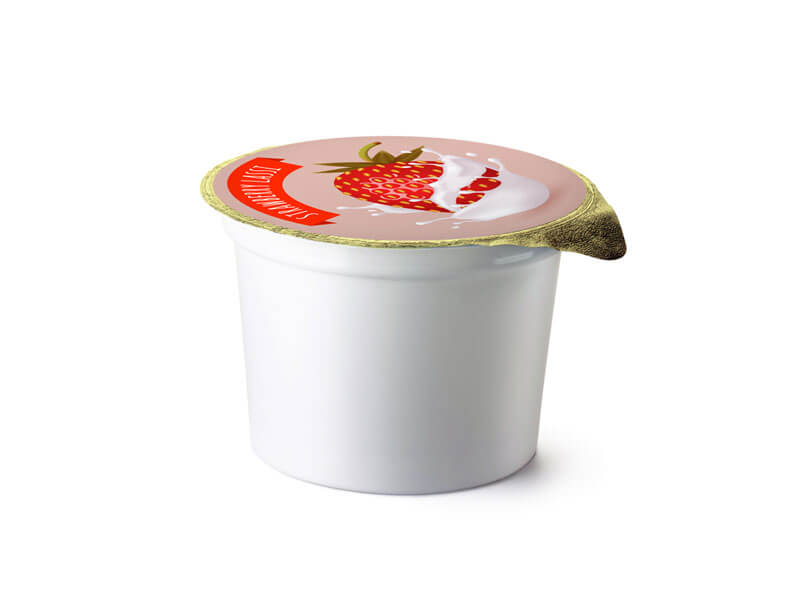

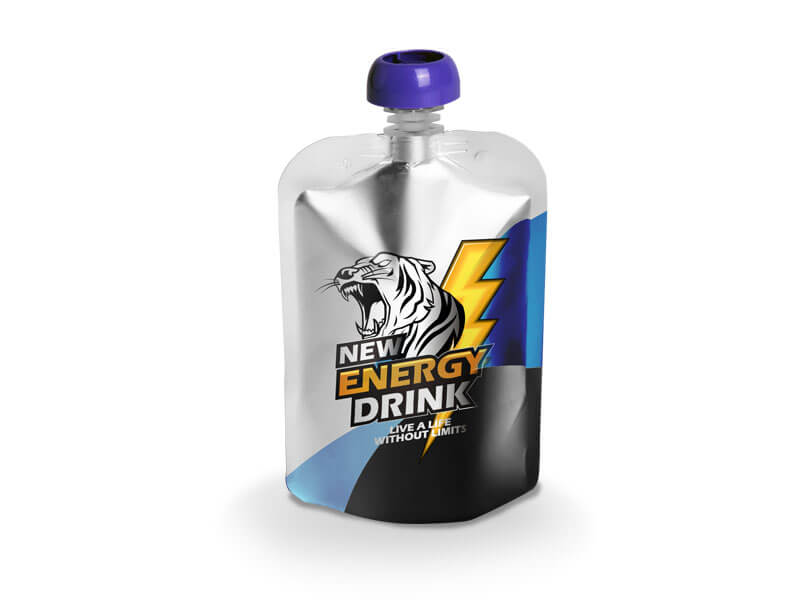

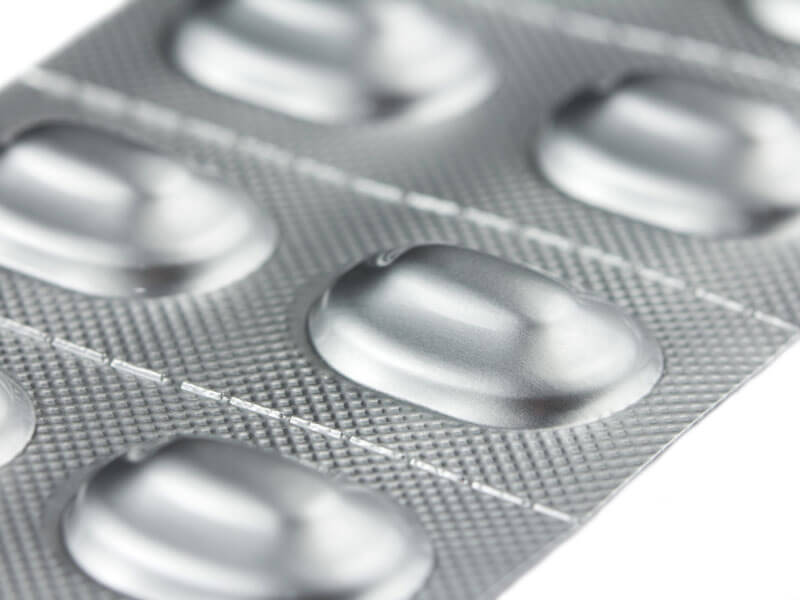

Applications

PET, CPP, PVC,OPP, PP, PE, Nylon, Aluminum Foil, Paper.
